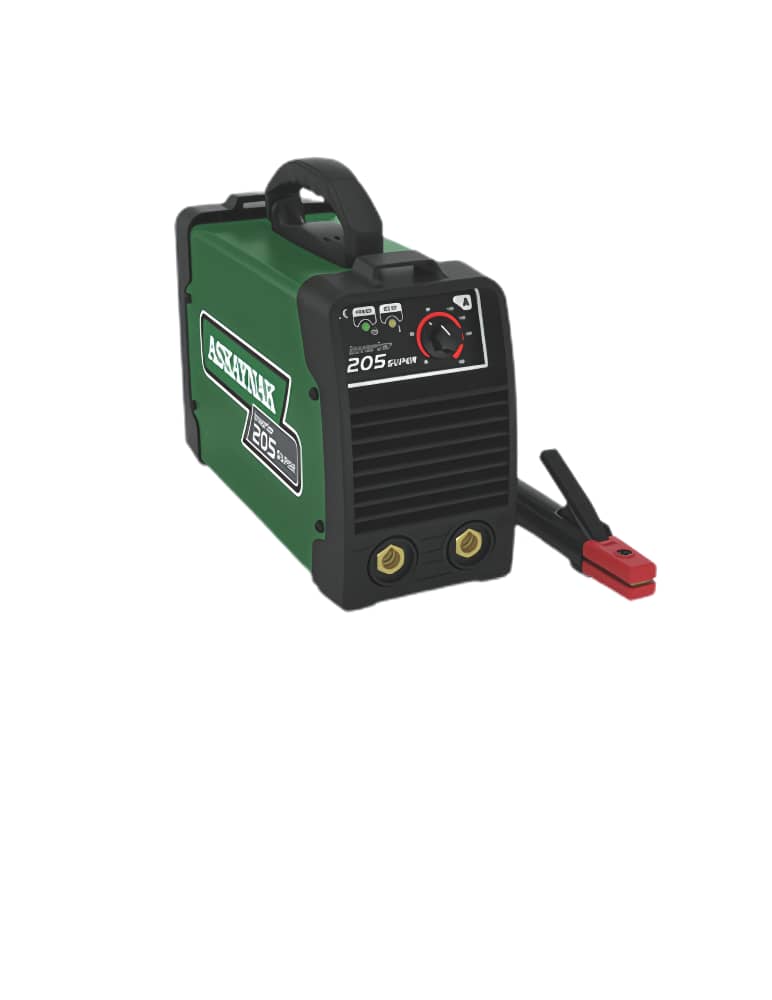

ASKAYNAK INVERTER 205 – SUPER
Specifications
Inputs & Outputs
Phase 1: Input Voltage #1 (Voltage/Phase/Hertz) 220/1/50/60
Phase 1: Rated Output #1A (Current/Voltage/Duty Cycle) 180A/27.2V/%20
Phase 1: Rated Output #1B (Current/Voltage/Duty Cycle) 110A/24.4V/%60
Phase 1: Rated Output #1C (Current/Voltage/Duty Cycle) 90A/23.6V/%100
Phase 1: Input Current at Max Rated Ouput #1 (Current) 38.5
Weights & Dimensions
:(H x W x D) 250 mm x 138 mm x 370 mm (9.84 in x 5.31 in x 14.57 in)
Net Weight:: 6.7 kg (14.77 lbs)
Features
Machines Communication Technology:: analog
Technical Specifications
Number of Operators per Machine:: 1
Input Voltage:: 220 V
Input Current:: 38.5 A (20%)
Input Hertz:: 50/60 Hz
Input Phase:: 1
Input Power:: 6.0 kW (20%)
Output Range:: 30 – 180 A
Warranty
Warranty 3 years
What’s Included
- Inverter 205 Super Power Source
- 2m welding cable and electrode holder
- 2m work cable and work clamp.
ASKAYNAK INVERTER 205-SUPER
DETAILS
Ideal for maintenance-repair and steel installation workshops and small-size welded construction applications.
Features
- Ideal for welding of carbon and low-alloy steels, even stainless steels.
- Suitable for operation on site or within a workshop environment by providing maximum flexibility.
- Weighing only 6.7 kg.
- Thermostatic overload protection and indicator light.
- Easy-to-use and user-friendly control panel.
- Recessed controls and connections designed to help protect controls from damage.
- Two quarter-turn (positive and negative) output terminals for easy cable connection.
- IP21S protection class.
- The technical data in the table below are valid for products manufactured as of April 2023, and the user manual is Askaynak Inverter 205 Super User Manual – 2. Technical data of products manufactured before this date can be found in Askaynak Inverter 205 Super User Manual – 1.
